The equipment applies oil balloon probes, with elegant appearance and comfortable feelings. Measurement results are accurate as well as stable, Used a new hardware, the software interface is much more beautiful, more convenient to operate and easier to learn, bring users excellent experience.

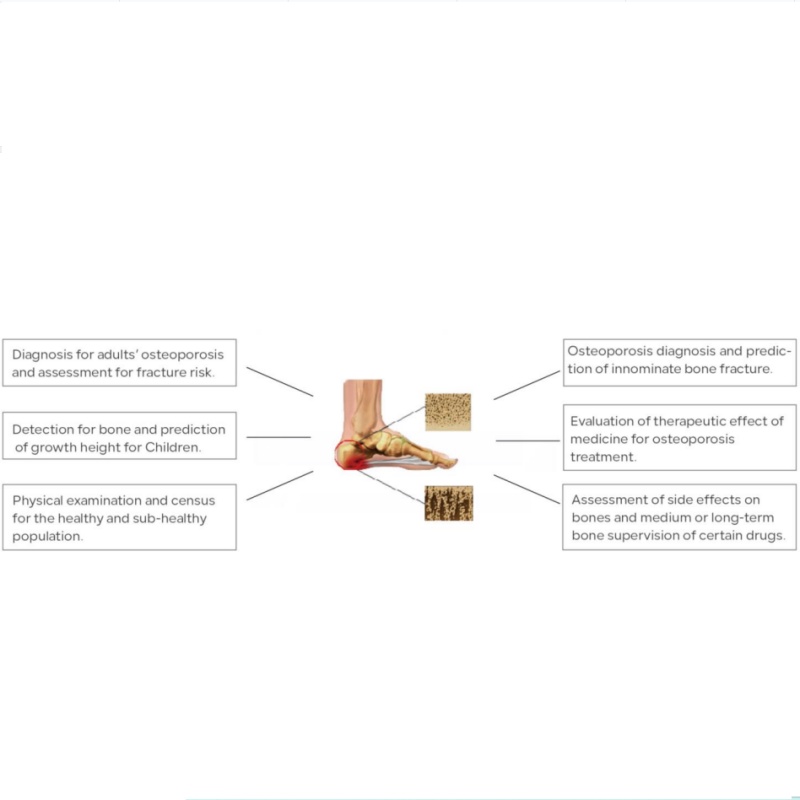

This equipment is suitable for all kinds of health and medical institutions, and can be used in diagnosis and assessment of the elderly osteoporosis and teenager bone growth.

1. Measurement Part Calcaneus
2. Measurement Method Full dry ultrasonic measurement
3. Ultrasound Parameter BUA,SOS,OI
4. Other Parameter T-Score, Z-Score, T-Ratio, Z-Ratio, BMI,

Height prediction(ABD-3000M+)

5. Transducers Frequency           0.5MHz±15%
6. MeasurementTimes              ≤25s
7. Operating system          Windows xp /7 /8 / 10, Android 5.0 and above
8. OperatingTemperature 5-40°C
9. Humidity                        30-70%
10. Electrical Power Requirement: AC220V±10%,50HZ
11. Dimension(mm)                 645mm*330mm*360mm
12. Weight                         15KG

1. Faster: Measure quickly and simply, especially suitable for a large number of patients census.
2. More Accurate: Oil balloon Transducer, searching for the best signal automatically. Temperature compensation system, improving the measurement accuracy. Use global bone density database, according to patients race to select database. According to patients’foot size, choosing the different foot plate to reduce errors.
3. More Economical: The oil balloon is special, which can be used permanently in the equipment lift cycle. Consumables are ultrasound transmission gel and printing paper, economical.
4. Safer: Painless, non-trauma and non-radiation, can be measured repeatedly. QUS quantitative ultrasound measuring, especially suitable for pregnant women, children and other special groups.
5. More Authoritative: Use WHO’s Osteoporosis Diagnosis Standard.
6. More Convenient: ABD-3000M+ model Adult/ Child calf support can be replaced.

Built-in printer can print quickly. ABD-3000+ can be connected to tablet, can be used anywhere.

Host (one)

Foot plate (two)

USB cable (one)

Phantom (one)

Power cable (one)

Program CD (one)

Instruction manual  (one)

Tablet (one)
