The machine use the ultrasound to measure the Radius bone density, the measurement process is no wound, especially suitable for pregnant women, children and other special populations.
The machine suitable for all kinds of medical and physical examination institutions, it can provide detailed measurement date for the elderly osteoporosis and the development of children bone density.
1, Light and portable: The product appearance is small and elegant, easy to carry, can link desktop computer, laptop or tablet
2, Convenient: Measurement position is radius, it is very convenient to use
3, Result accurate: The measurement results are not affected by soft tissue thickness, bone sizeand skeletal shape
4, Wide applicability: including Asia, Europe and other region database, multi-age data can be chosen. Measurement range: infants (0-3 years old), children (0-20 years old), adults/seniors (20-100 years old), automatic analysis results
MODEL | ABD-7000 |
Measurement Theory | Critical Angle Side Wave Theory |

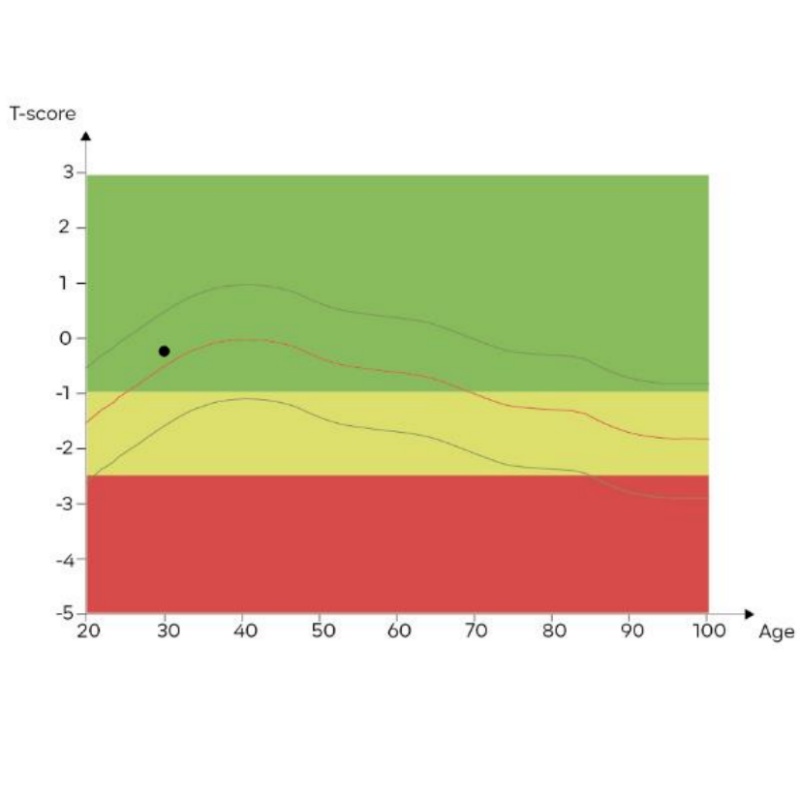

Ultrasound Parameters | SOS, T-score |
Other Parameters | T-score, Z-score, BQI, RRF EOA |
Probe Frequency | 1MHZ±15% |
Measure Time | Single ≤ 10s, Repetition ≤ 30s |
Operating system | Windows XP or above |
Operating temperature | 5-40°C |
Operating humidity | Relative humidity ≤ 80% |
Power requirements | AC220±10%, 50Hz±1Hz |

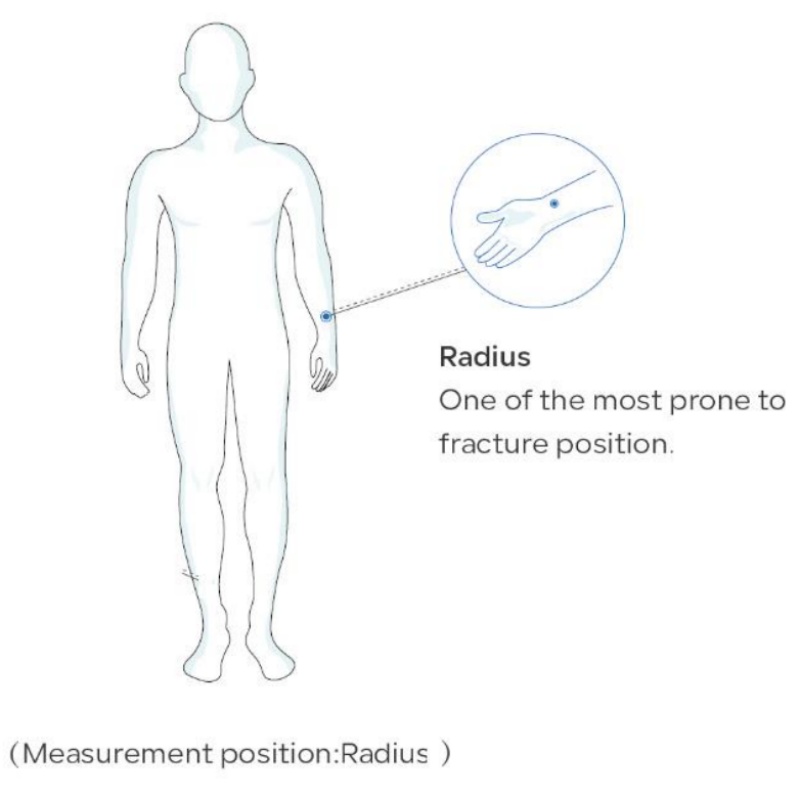

Measure Position | Radius |

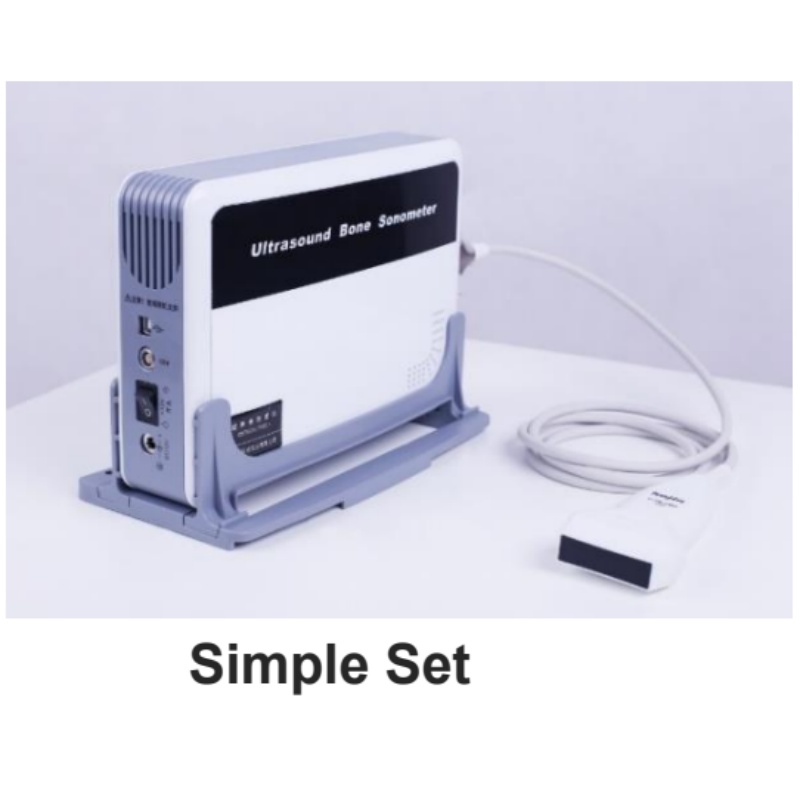

Simple Set Configuration: Host machine with accessory+software
Complete Set Configuration:
Host machine with accessory+software+all-in-one computer+printer+trolley
