The machine use the ultrasound to measure the Radius and Tibia bone density, the measurement process is no wound, especially suitable for pregnant women, children and other special populations.



The machine suitable for all kinds of medical and physical examination institutions, it can provide detailed measurement date for the elderly osteoporosis and the development of children bone density.

Advantages

1, Light and portable: The product appearance is small and elegant, easy to carry, can link desktop computer, laptop or tablet

2, Convenient: Measurement position is radius (or tibia), it is very convenient to use

3, Result accurate: The measurement results are not affected by soft tissue thickness, bone sizeand skeletal shape

4, Wide applicability: including Asia, Europe and other region database, multi-age data can be chosen. Measurement range: infants (0-3 years old), children (0-20 years old), adults/seniors (20-100 years old), automatic analysis results

Parameter Table

MODEL ABD-7000+
Measurement Theory Critical Angle Side Wave Theory
Ultrasound Parameters SOS, T-score
Other Parameters T-score, Z-score, BQI, RRF EOA
Probe Frequency 1MHZ±15%
Measure Time Single ≤ 10s, Repetition ≤ 30s
Operating system Windows XP or above
Operating temperature 5-40°C
Operating humidity Relative humidity ≤ 80%
Power requirements AC220±10%, 50Hz±1Hz

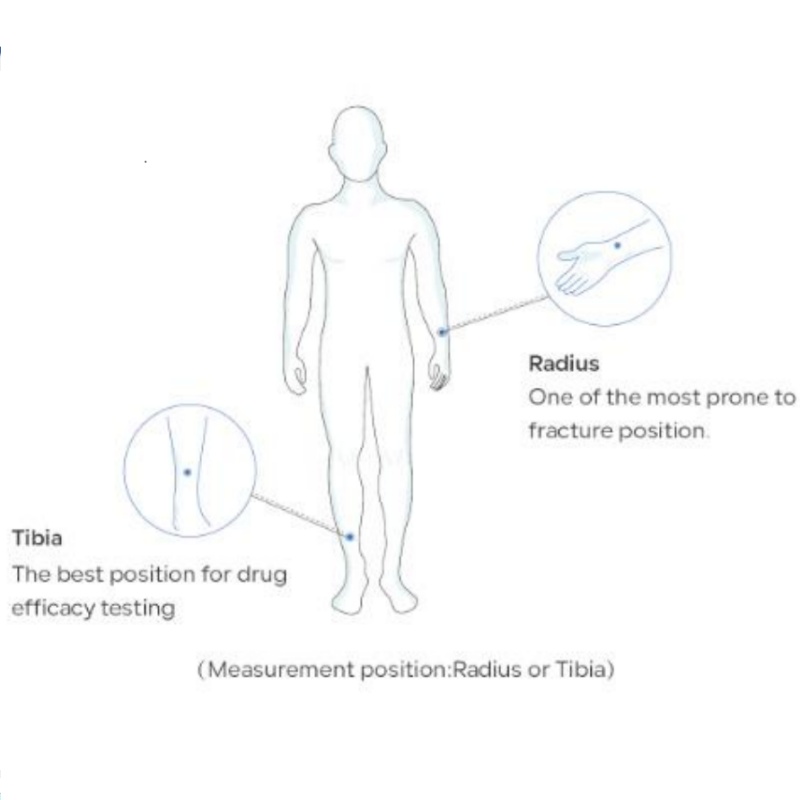

Measure Position Radius and Tibia

Configuration

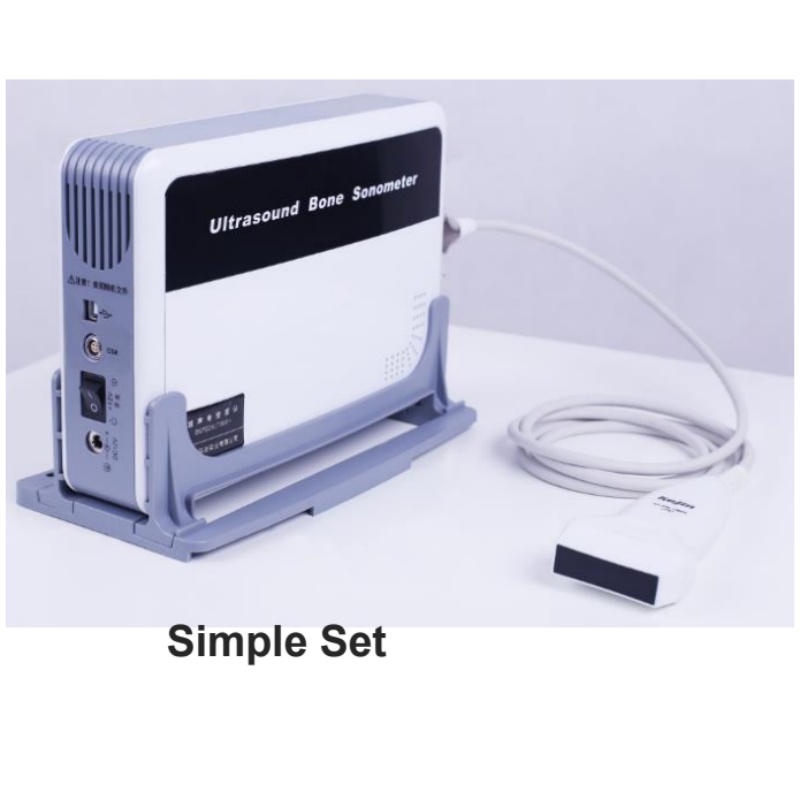

Simple Set Configuration: Host machine with accessory+software



Complete Set Configuration:

Host machine with accessory+software+all-in-one computer+printer+trolley
