-Super low level design.
-Quality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table.
-The tabletop adopts high quality of carbon plastic plate, which is convenient for X-ray exam and photography (double deck optional).
-Using electro-hydraulic working principle, with AC and DC, control various actions through dual controllers.
-The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.
-lmported motors, pipelines and solenoid valves.
-Electric braking device, convenient for shifting the table.
-The head board and leg plate are controlled by imported gas spring. Leg plate is split and detachable.
PARAMETER | SPECIFICATION |
Length | 2000±100mm |
Width | 520±20mm |
Height Adjustment | (560-860) ±50mm |

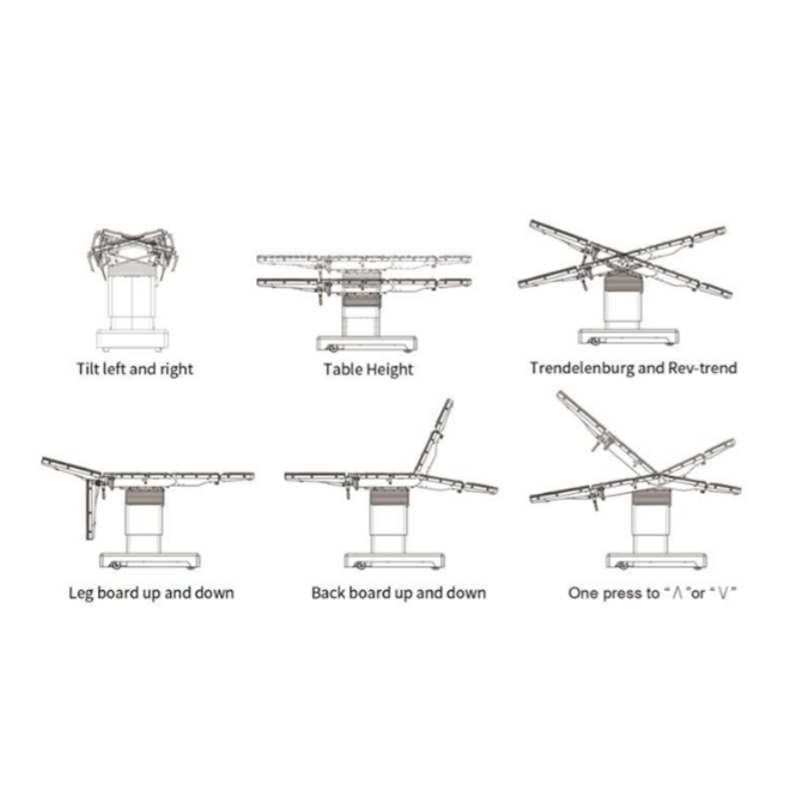

Tilt (left) | ≥20°; Tilt (right)≥20° |
Trendelenburg | ≥20°; Rev-Trend≥18° |
Head Board Upward | ≥50°; fold downward≥90° |
Backboard Upward | ≥70°; fold downward≥20 |
Waist Board Lifting | 100±20mm |
Leg Board Upward | ≥15°; fold downward≥90° |
Leg Board Outwards | ≥180° |
Lumbar Upper Corner”∧” | ≤160°; Lumbar Upper Corner”∨”≤105° |
Mains Voltage | AC220±22V, 50±1Hz |
Input Power | 500±10%VA |
Shoulder Support 1pc, Waist Support 1pc, Arm Support 2pcs, Leg Support 2pcs, Screen 1pc
