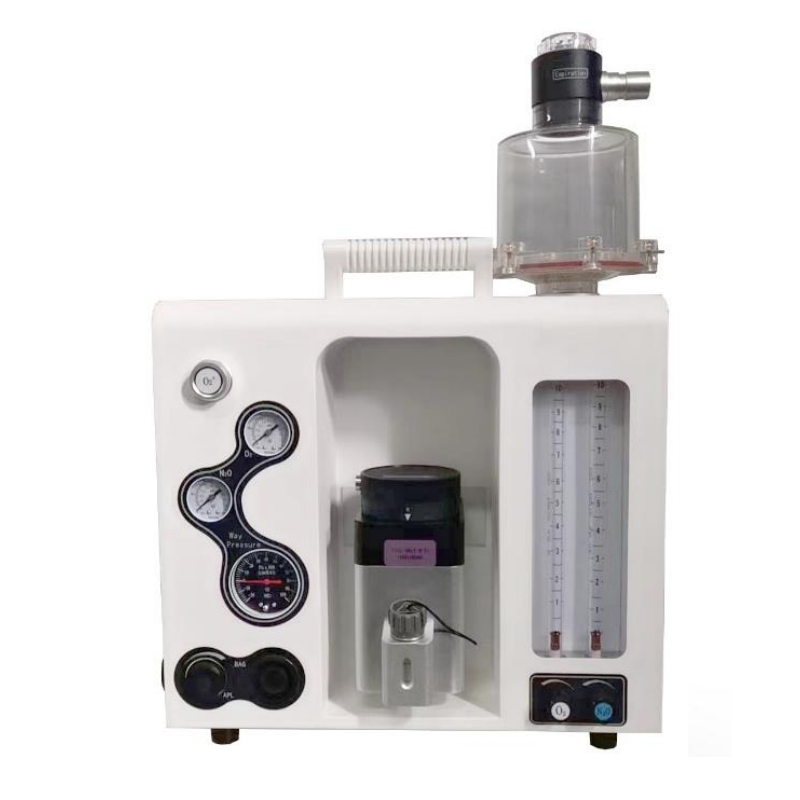

This is manual, light-weight, compact, portable Anesthesia Machine specifically designed for surgical locations where space or access is limited, such as Office Based Anesthesia (OBA), Dental anesthesia, Missionary off-shore anesthesia, Remote locations in hospitals outside O.R., Disaster scenes and mass casualty incidents, Front-line military hospitals, Shipboard, aircraft, etc., where size, mobility and portability are important.

1. Working mode: Manual
2. Patient scope: from Pediatric to Adult (3kgs over)
3. Tidal volume: 20-1500ml
4. Working pressure: O2:0.3—0.4Mpa, N2O:0.3—0.4Mpa
5. Flowmeters: 2 tube 2 gas flowmeter; O2 range: 0.1-10L/min, N2O range: 0.1-10L/min.
6. O2 and N2O linkage device (ORC system), FiO2 ≥25%
7. APL valve adjustment range: 0.5-6.0Kpa

8. O2 Flush: 30-60L/min

– Main Unit

– One Vaporizer; Agent type: Halothane, Isoflurane, Enflurane and Sevoflurane.

– Standard Accessories of breathing tubes for connecting and Mask etc.

– In-built Co2 absorber Canister with capacity of 2kg.

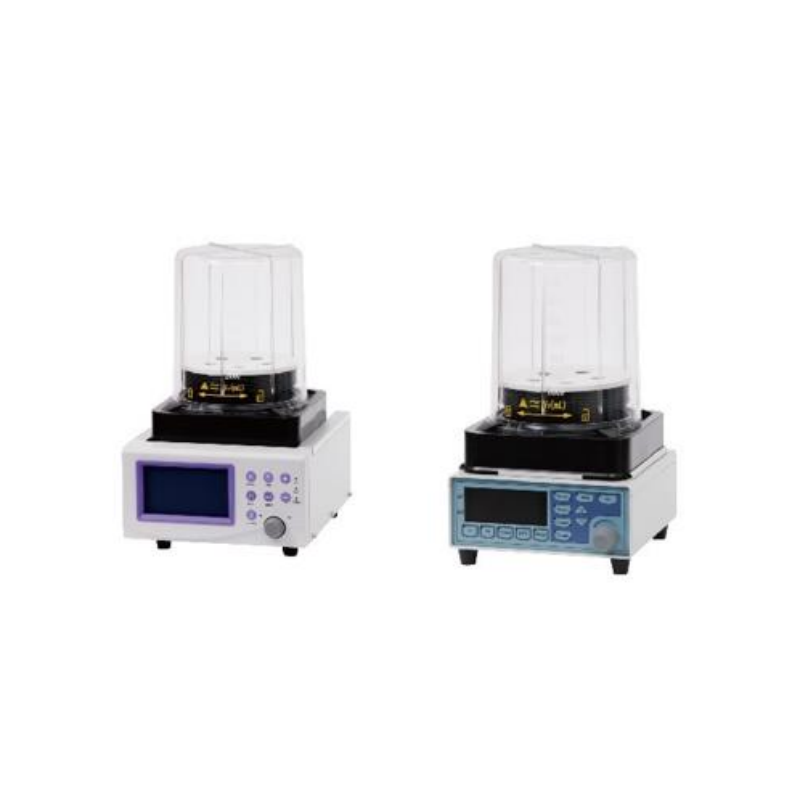

① Anesthesia Ventilator TH-1A

– Independent Anesthesia Ventilator, with IPPV and Manual mode

– With necessary monitoring and alarm function, to make sure the

operation safety

– Gas supply: O2, or Air

– With international connector, can be matched with various brands

of anesthesia machines

– Respiration mode: IPPV, SIMV, Manual

– Respiratory frequency: 1 to 65BPM

– Display: 5.5´ SNT screen

– I:E ratio: 8:1~1:8

– Waveform: P-t, V-t

– Monitor Parameters: Tidal volume; Minute Ventilation; Peak

– Tidal volume: 50ml~1600ml

② Anesthesia Ventilator TH-1

– Independent Anesthesia Ventilator, with IPPV and Manual mode

– With necessary monitoring and alarm function, to make sure the

operation safety

– Gas supply: O2, or Air

– With international connector, can be matched with various brands

of anesthesia machines

– Control method: Gas driving electronic controlled

– Breath frequency: 1~90BPM

– Display: High light LED display

– I:E ratio: 4:1~1:6

– Respiration mode: IPPV, Manual

– Monitor Parameters: Tidal volume; Minute Ventilation; Breath

Frequency; Airway Pressure

– Tidal volume: 50~1500ml
