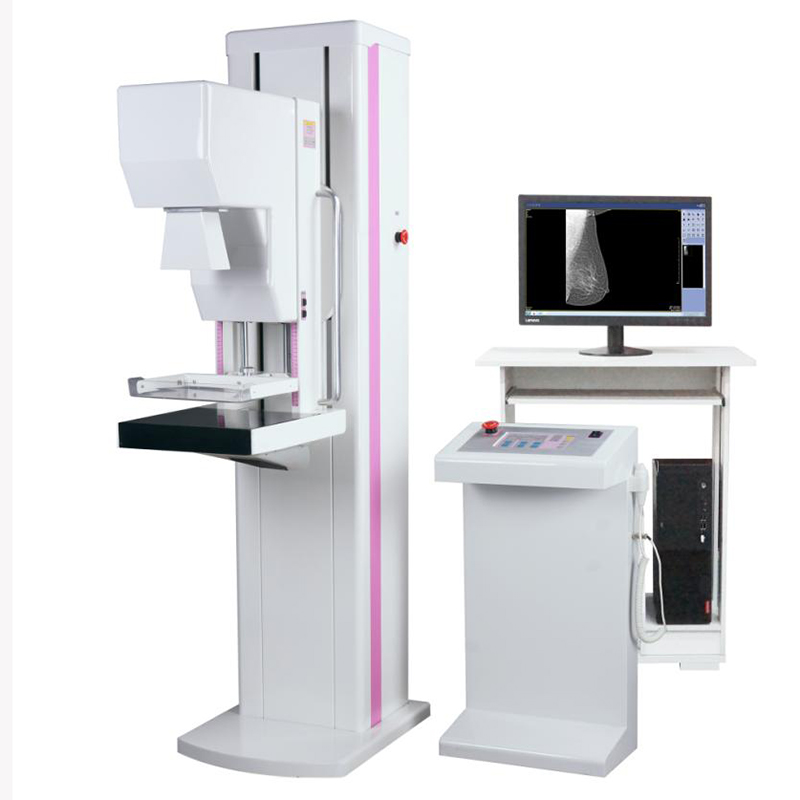

AR-98B is your best choice for a cost-effective digital mammography system. It can achieve the most demanding workloads from everyday screening to follow-up studies. PBT medical’s trusted technology promises good performance and quality results.
AR-98B is a safe choice for mammographic breast examinations. Its clever design makes it adapted to both hospital’s large workflow screening and smaller clinics’ demands. Owing to the compact steel structure, the system also adapts well to mobile installations.
The metal structure frame is really suitable for long-distance transportation, and is also convenient for vehicle use. The paddle released automatically after exposure, and could be released manually at any time.
Our machine stands out from other mother mammography units with its integrated and extremely reliable quality. The US patent dry-type high-frequency generator produces efficient dual power to ensure constant imaging. The ripple-free output reduces glandular dose, eliminates retakes and extends the life span of the x-ray tube. All the effort and innovation are paid to perform the best quality mammography system to our customers.
| PARAMETER | SPECIFICATION |
| X-ray Generator | |
| Generator Type | High Frequency Inverter 80kHz |
| Input Power | Single Phase 220VAC, 50/60Hz |
| Radiographic Ratings | Large Focal Point 20-35kV/10-510mAs |
| Small Focal Point 20-35kV/10-100mAs | |
| Power Rating | 6.2kW |
| X-ray Tube | |
| Model | China Hangzhou LR01 |
| Focal Spot Size | Dual Focus 0.2 / 0.4mm |
| Target Material | Molybdenum (Mo) |
| Port Material | Beryllium (Be) |
| High-speed Anode Drive | 2800rpm |
| Target Angle | 12° |
| Anode Heat Storage | 80kJ（110kHU） |
| Anode Cooling | Air Cooling |
| Filtration | Mo（0.03mm） |
| Radiographic Stand | |
| U-arm Vertical Movement | 590mm |
| Rotations Deg | +90°～-90° |
| SID | 650mm |
| Compressor | The compressor is automatically released after the exposure is completed |
| Compressor Max. Pressure | 200N |
| Compressor Max. Travel | 156mm |
| Detector | |
| Detector Material | Amorphous Silicon |
| Effective Coverage Of
Detector |
24cm×30cm |
| Pixel Matrix | 2816×3528 |
| Limit Of Spatial Resolution | 6.0Lp/mm |
| DQE Value | ＠4 Lp/mm:≥35% |
| Dynamic Range | 14bit Digital Output |
| Pixel Size | 85μm |
| Output | Ethernet |
| Working Condition | 10℃-40℃ |
| Storage Environment | -10℃-50℃ |
| Image Acquisition Workstation Hardware | |
| CPU | Intel Core Duo 3.0GHz |
| Hardware | ≥1T high Speed Hardware |
| Memory | ≥8G |
| Display Card | ≥2G |
| High Brightness
High-contrast LCD |
1920*1080Pixel Resolution |
| Network interface Worklist | DICOM3.0 Transmission |
| 100/1000 Gigabit Ethernet | |
| Software | Imaging Software Package DMOC V1.0 |
| No. | Configuration | Quantity |
| 1 | Mammography machine host | 1 |
| X-ray tube for breast | 1 | |
| High frequency X-ray generator | 1 | |
| Mammography column | 1 | |
| Electric lifting and rotating U-shaped arm | 1 | |
| Console | 1 | |
| 2 | Foot switch | 1 |
| 3 | Exposure hand brake and connection | 1 |
| 4 | Supporting cables include: | – |
| Dedicated three-wire power cord | 1 | |
| Dedicated ground wire | 1 | |
| Spare fuse | 2 | |
| 5 | Flat panel detector | 1 |
| 6 | Control system of special high-pressure generator for breast | 1 |
| 7 | Breast image acquisition system | 1 |
| DM image acquisition software package | 1 | |
| DMOC image processing module | 1 | |
| Computer host | 1 | |
| 8 | Random documents include: | – |
| Product Operation Manual | 1 | |
| Product concise operation instructions | 1 | |
| Product warranty | 1 | |
| Maintenance Reference Manual | 1 | |
| Final product inspection and test report | 1 | |
| Product acceptance report | 1 | |
| Product certification | 1 |
