Touch screen Floor-mounted Digital X-ray Radiography System adopts floor-mounted table and wall stands. Its smart design, flexible movement, easy operation and high working efficiency provide more imaging positions. It is a high-end digital radiography device with wide range of applications, which could perform routine imaging of human head, chest, abdomen, lumbar vertebra and limbs with PA, LAT and clinostatism in hospitals at all levels.
| Model | ARFD-32 | ARFD-50 | ARFD-65 | ARFD-80 | |
| X-ray Generator | |||||
| Power Output | 32KW | 50KW | 65KW | 80KW | |
| Power Input | Standard 380V 3 Phase or 220V Single Phase, Optional 110V Transformer | ||||
| Frequency | ≥25KHZ | ≥25KHZ | ≥25KHZ | ≥25KHZ | |
| Current | 10-400mA | 10-630mA | 10-800mA | 10-1000mA | |
| Voltage | 40kv-125kv | 40kv-150kv | 40kv-150kv | 40kv-150kv | |
| mAs | 0.1-150mAs | 0.1-630mAs | 0.1-800mAs | 0.1-1000mAs | |
| Exposure time | 1-6300ms | 1-6300ms | 1-6300ms | 1-6300ms | |
| APR program | Equipped | Equipped | Equipped | Equipped | |
| Intelligent protection system | It has self-protection system. It will give an alarm and check fault code | ||||
| X-Ray Tube | |||||
| Anode type | Rotating Anode | Rotating Anode | Rotating Anode | Rotating Anode | |
| Focal Spot value | 1.0mm /2.0mm | 0.6mm /1.2mm | 0.6mm /1.2mm | 0.6mm /1.2mm | |
| Maximum voltage | 125KV | 150KV | 150KV | 150KV | |
| Revolving speed of
anode |
2800rpm | 2800rpm | 8400rpm | 8400rpm | |
| Inherent filtration | 1.0mmAl | 1.0mmAl | 1.0mmAl | 1.0mmAl | |
| Anode heat storage
capacity |
140kHU | 300kHU | 300kHU | 300kHU | |
| Maximum cooling
rate of anode |
450W | 870W | 750W | 750W | |
| Housing heat
storage capacity |
900kJ | 900kJ | 900kJ | 900kJ | |
| Flat Panel Detector | |||||
| Type | Amorphous Silicon | ||||
| Scintillator | Cesium Iodide | ||||
| Vision size | 17*17″ (43cmx43cm) | ||||
| Active pixel | 3072 x 3072 | ||||
| Pixel pitch | 139um | ||||
| A/D conversion | 16bits | ||||
| DQE | ≥70% | ||||
| Spatial resolution | 36Lp/cm | ||||
| Acquisition time | ≤2S | ||||
| Collimator | |||||
| Type | Manual Collimator | ||||
| Max.window | 440mm×440mm (SID=100cm) | ||||
| Lamp | AC/DC24V、5W | ||||
| Lamp timer | Automatic illumination with timer for lamp(30S) | ||||
| Inherent filtration | 1.0mmAl | ||||
| Illuminant | LED | ||||
| Grid | |||||
| Densities | 40LP/CM | ||||
| Ratios | 10:1 | ||||
| Size | 18”×18” | ||||
| Focal distance | 130cm | ||||
| Table | |||||
| Type | Radiography Table | ||||
| Tabletop size | 2000mm×800mm | ||||
| load-bearing | 300KG | ||||
| Movement | |||||
| 1.Tube Stand | |||||
| Up-down movement | 1280mm | ||||
| Stand left-right
movement |
1800mm | ||||
| Rotational angles of stand | +180°~-180° | ||||
| Rotational angles of tube | ±90° | ||||
| 2.Detector Stand | |||||
| Up-down movement | 1280mm | ||||
| Workstation | |||||

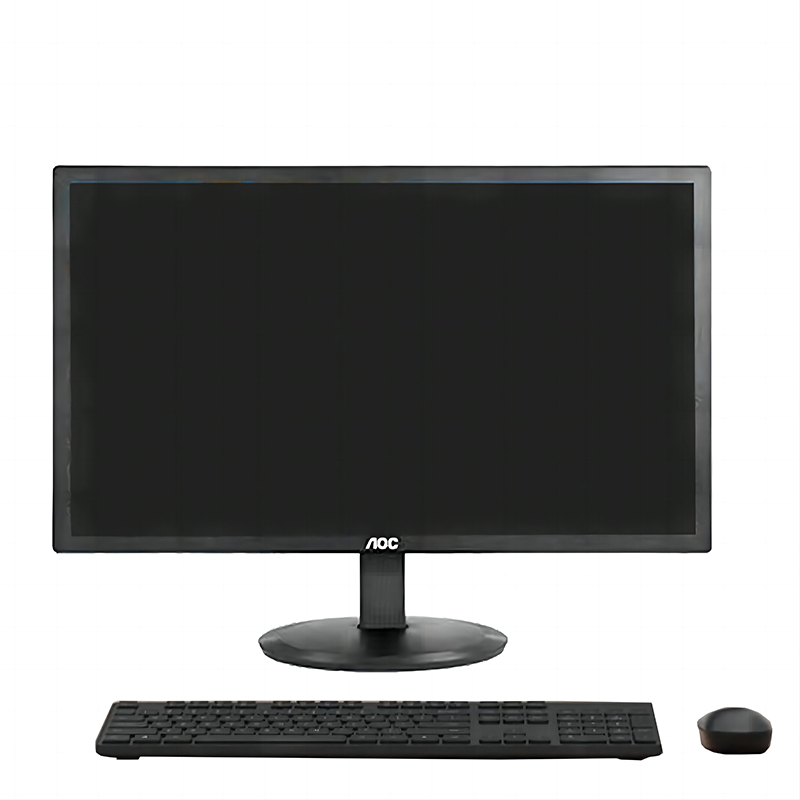

| Monitor | 24’’ LCD | ||||
| CPU | ≥2.0GHz | ||||
| Memory | ≥2GB | ||||
| HDD | ≥500GB | ||||
| DICOM3.0 | Query for integration with any PACS | ||||
| Functions | Import/export function | ||||
| Image info | |||||
| Management of patient info | |||||
| Post processing | |||||
| Measurement etc. | |||||
| 24’’ LCD | |||||
