Two different X-ray tubes to choose:

— Hangzhou LR01 tube from China

— IAE C339V tube from Italy

1. X-ray Generator

Complete solid-state high-frequency high-voltage generator.

Generator Type: High Frequency Inverter 80kHz

Input Power: Single phase 220VAC, 50/60Hz

Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs

Small Focal Point 20-35kV/10-100mAs

Power Rating: 6kW

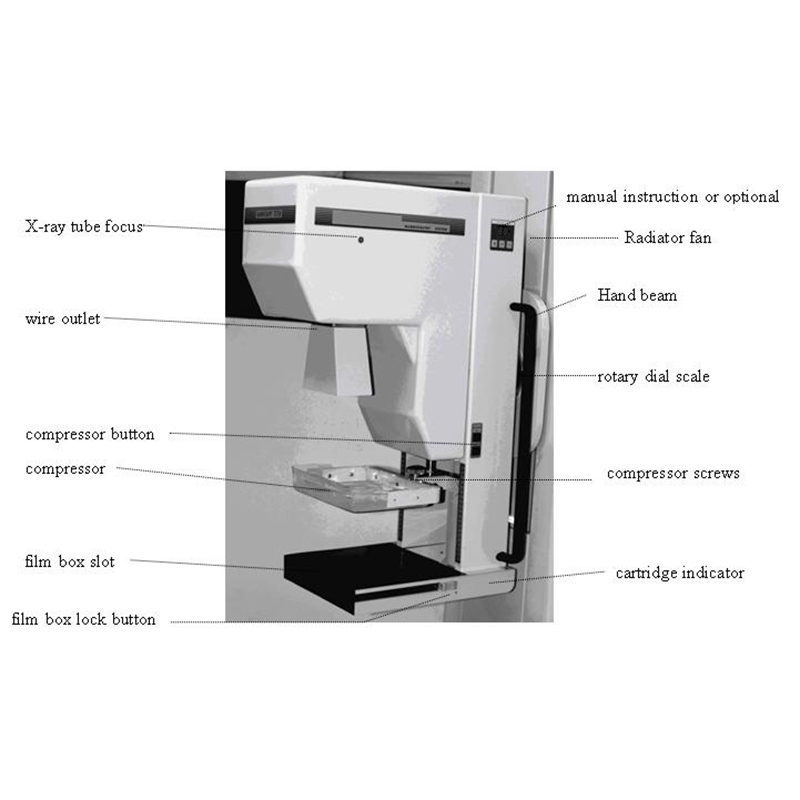

2. X-ray Tube

• Hangzhou LR01tube from China

Focal Spot Size： Dual Focus 0.2 / 0.4mm

Target Material：Molybdenum (Mo)

Port Material：Beryllium (Be)

Anode Heat Storage： 100KJ

Anode Cooling：Air cooling

Filtration： Mo（0.03mm），Al（0.5mm）

• IAE C339V tube from Italy

Focal Spot Size: Dual Focus 0.1/0.3mm

Target Material: Molybdenum (Mo)

Port Material: Beryllium (Be)

Anode Heat Storage: 210kJ (300kHU)

Anode Cooling: Air cooling

Filtration: Mo(0.03mm), Al(0.5mm)

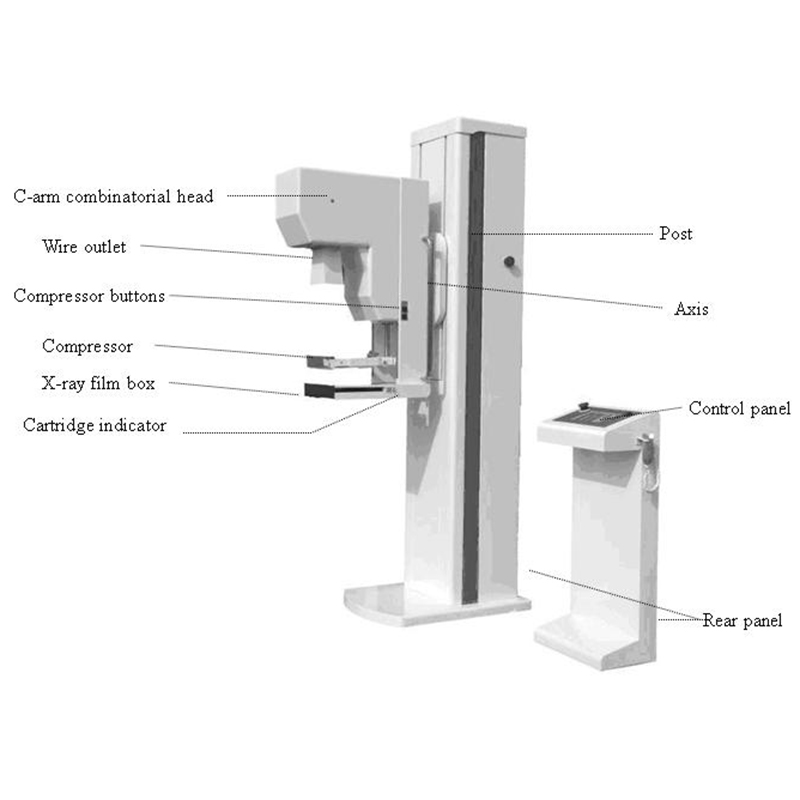

3. Radiographic Stand

C-ARM: Vertical Movement: 580mm

Rotations Deg:+175°~-180°

SID: 650mm

4. Cassette Image Receptor

Bucky Grid: 18*24cm Bucky drive mechanism

Grid Ratio: 5:1, 30 Line/cm

5. Radiographic Stand

C-ARM Vertical Movement: 580mm

C-ARM Rotation: +175°～-180°

SID: 650mm

6. Line Voltage

220Vac@25A, Single phase
