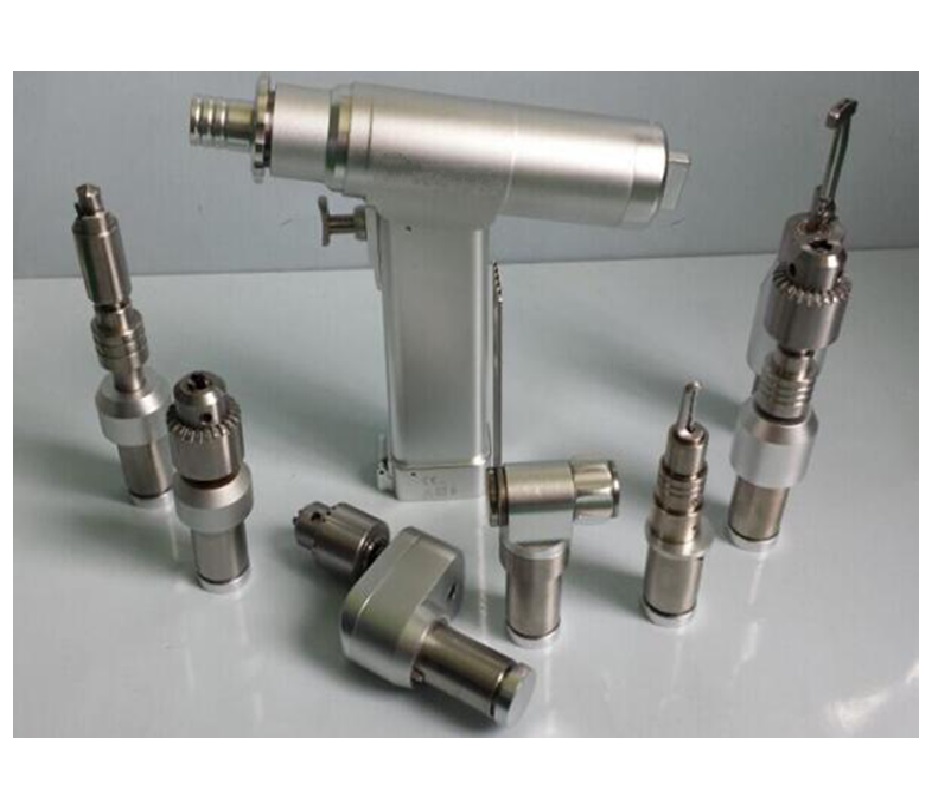

BM-100 multifunctional power system

With a comprehensive range of quick change attachments assembled in one full functional handpiece, afford surgeon a convenient option.

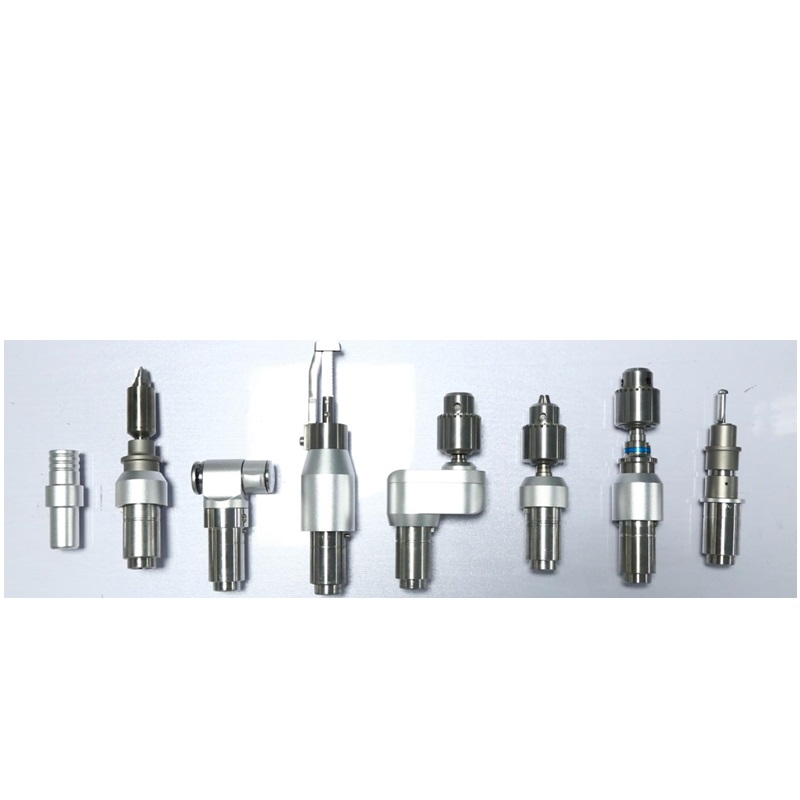

Standard configuration

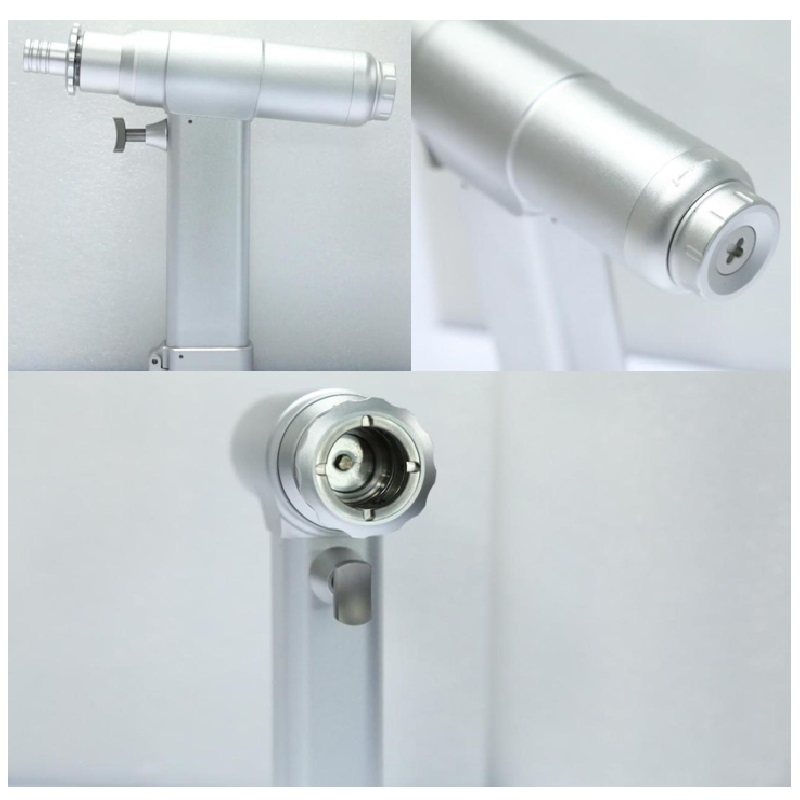

One hand piece

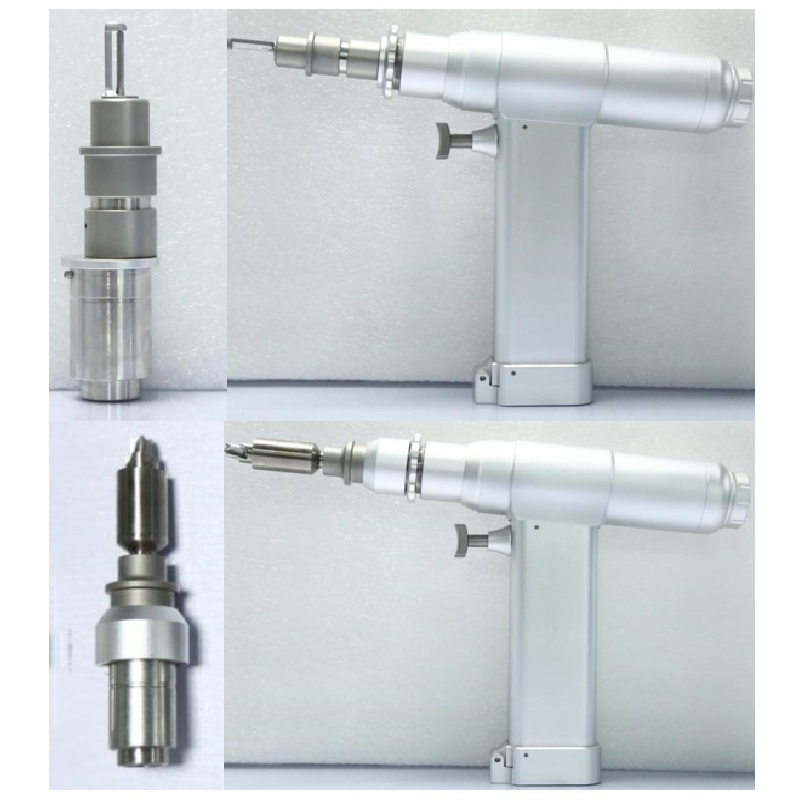

One cranial drill adapter

One cranial mill adapter

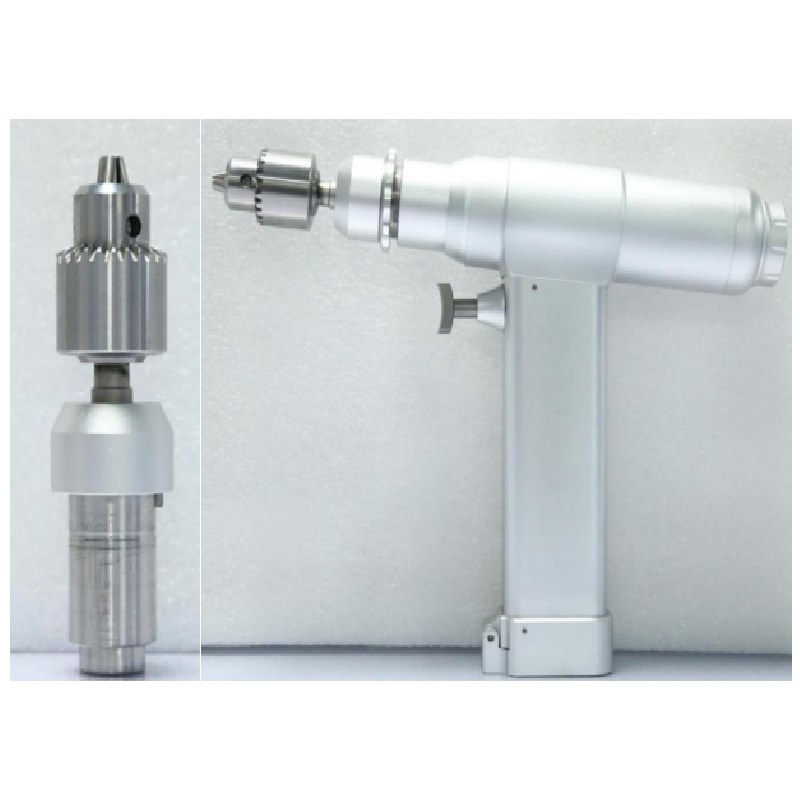

One bone drill adapter

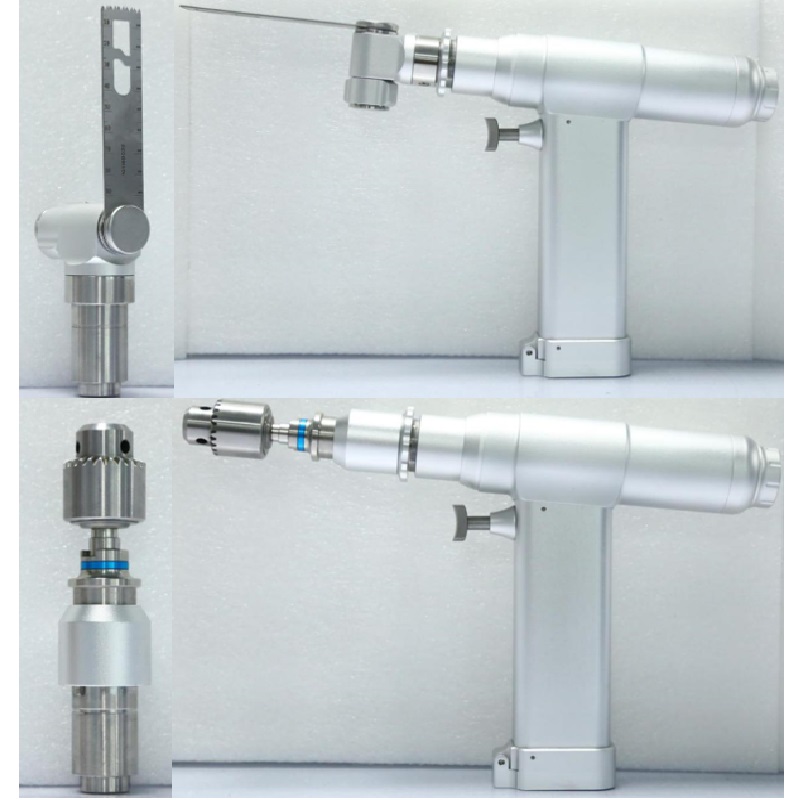

One oscillating saw adapter

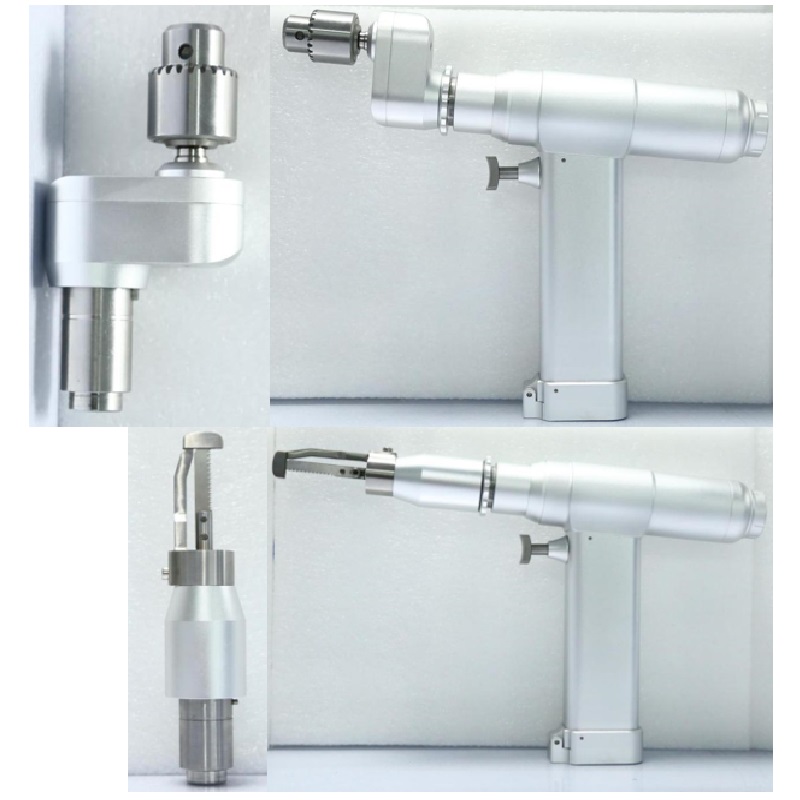

One canulate drill adapter

One sternum saw adapter

One reamer drill adapter

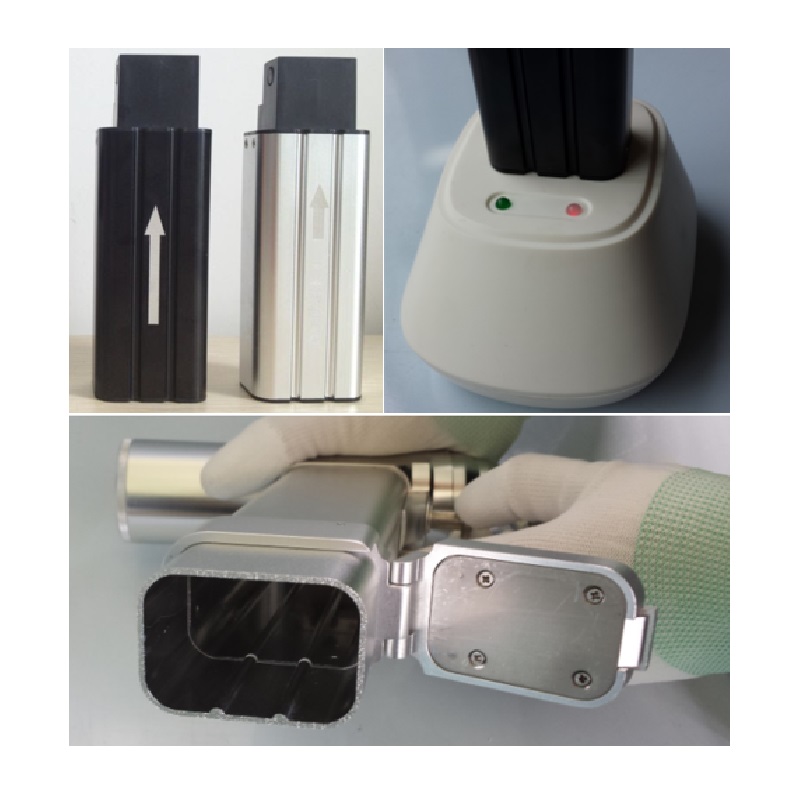

One charger

Two 14.4V batteries

Two aspetic battery transfer rings

Two sternum saw blades

Two oscillating saw blades

Three drill chuck keys

Two cranial mill blades

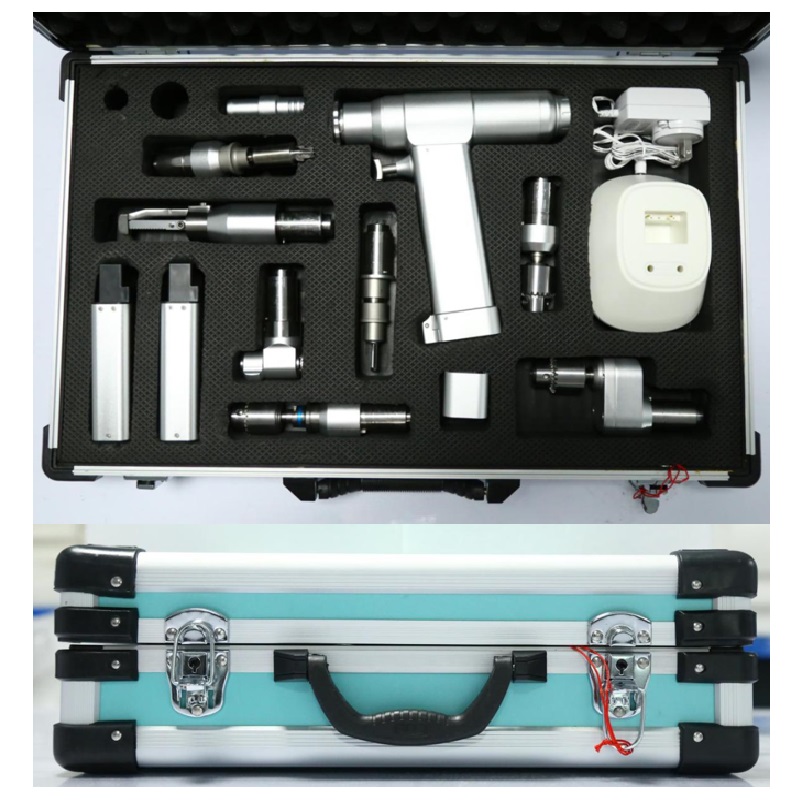

One Aluminum case

Technical data

SPECIFICATION PARAMETERS
Bone drill speed 0-1300r/m
Cannulated drill speed 0-600r/m
Oscillating saw 0-18000osc/m
Acetabular bone drill 0-500r/m
Craniotomy drill 0-900r/m
Craniotomy mill 0-40000r/m
Sternum saw 0-15000osc/m
Saw non-load noise ≤75dB
Drill non-load noise ≤65dB
Diameter run-out ≤0.5mm
Oscillations 0-15000r/min
Bone drill speed 0-1300r/m

Application and Feature

Electric surgical drill & saw is one of power tools widely used in orthopedic operation. Gradually replaced traditional industrial drill and saw, it can be autoclaved up to 135°C high temperature and 1.6Mpa high pressure. Some of bacteria can be killed by high temperature and pressure, fumigating can not do. Meanwhile, it can shorten sterilization time. Under high temperature and high pressure, just need 20 minutes, win the valuable time for the patient. The device is optional, good looking, small size, light weight, no wires, easy to carry, safe operation.

Composition

Battery operated surgical drill&saw is made of main hand piece, charger, battery. The whole outer skin of the hand piece is sealed. Charger is not a medical electric device.

Main Technical Data

Item Content Specifications
Hand Piece Working Voltage 14.4V
Output Power ≥20W
Unit rise in temperature ≤25°C
Charger Input Voltage AC 220V,50Hz
Output Power 14.4V,900mA
Input Power 30VA
Battery Voltage 14.4V
Charging time About 3 hours
