Features

  1. Whole chair with steel frame provide strong bearing capability, safe working load up to

240kg.

  1. High density (45D) polyurethane foam for mattress with moderate elasticity and

durability provides additional comfort for patients having to sit for long periods.

  1. Soft upholstery makes of breathable PVC material, which is waterproof, fire retardant,

anti-corrosion, easily clean & disinfection. The PVC leather is resistant to disinfectants,

blood and urine too.

  1. Four upholstery colors to choose from.Warm & light colors of upholstery contribute to

patient’s mental well-being.

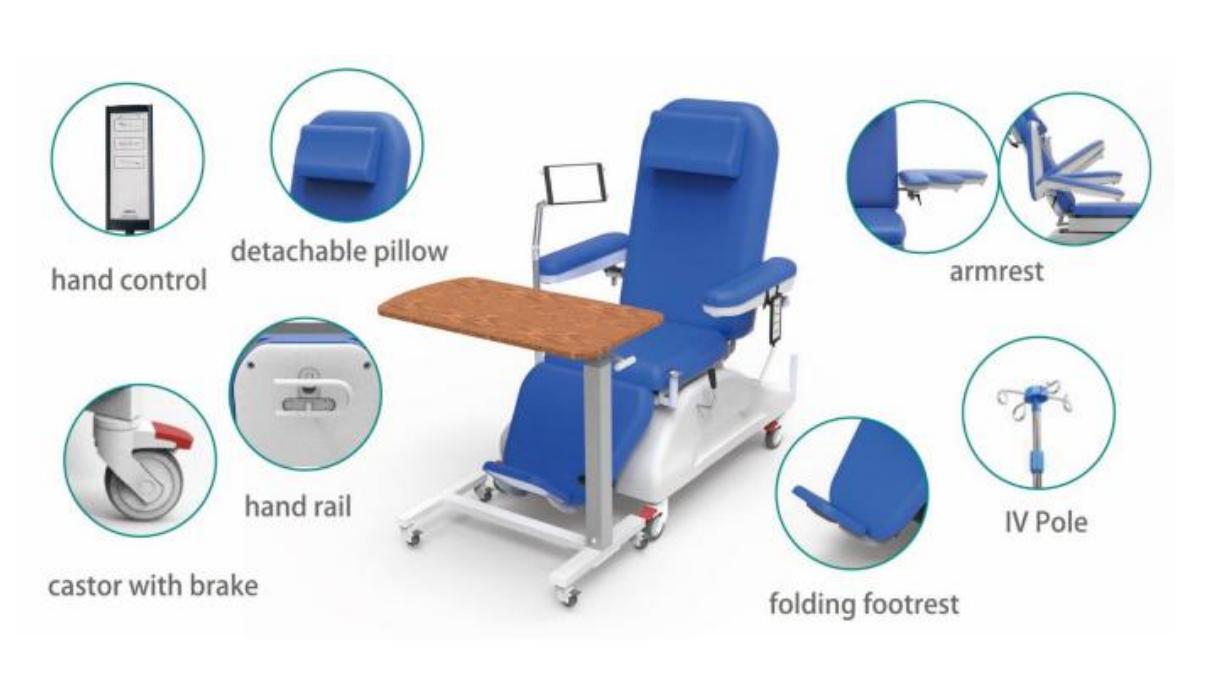

  1. The hand control allow for quick positioning for any situations, including trendelenburg

(or shock position) with the push of one button.

  1. Mute medical castors of φ100mm with separate brake.
  2. The detachable headrest pillow can be adjusted according to the height of each patient.
  3. Three Denmark Linak motors to choose from.
  4. Several OPTIONAL accessories (for extra charge): Battery, LED reading lamp, Paper

roll holder, Over-bed table, Folding table.

Technical Specifications

PARAMETER SPECIFICATION

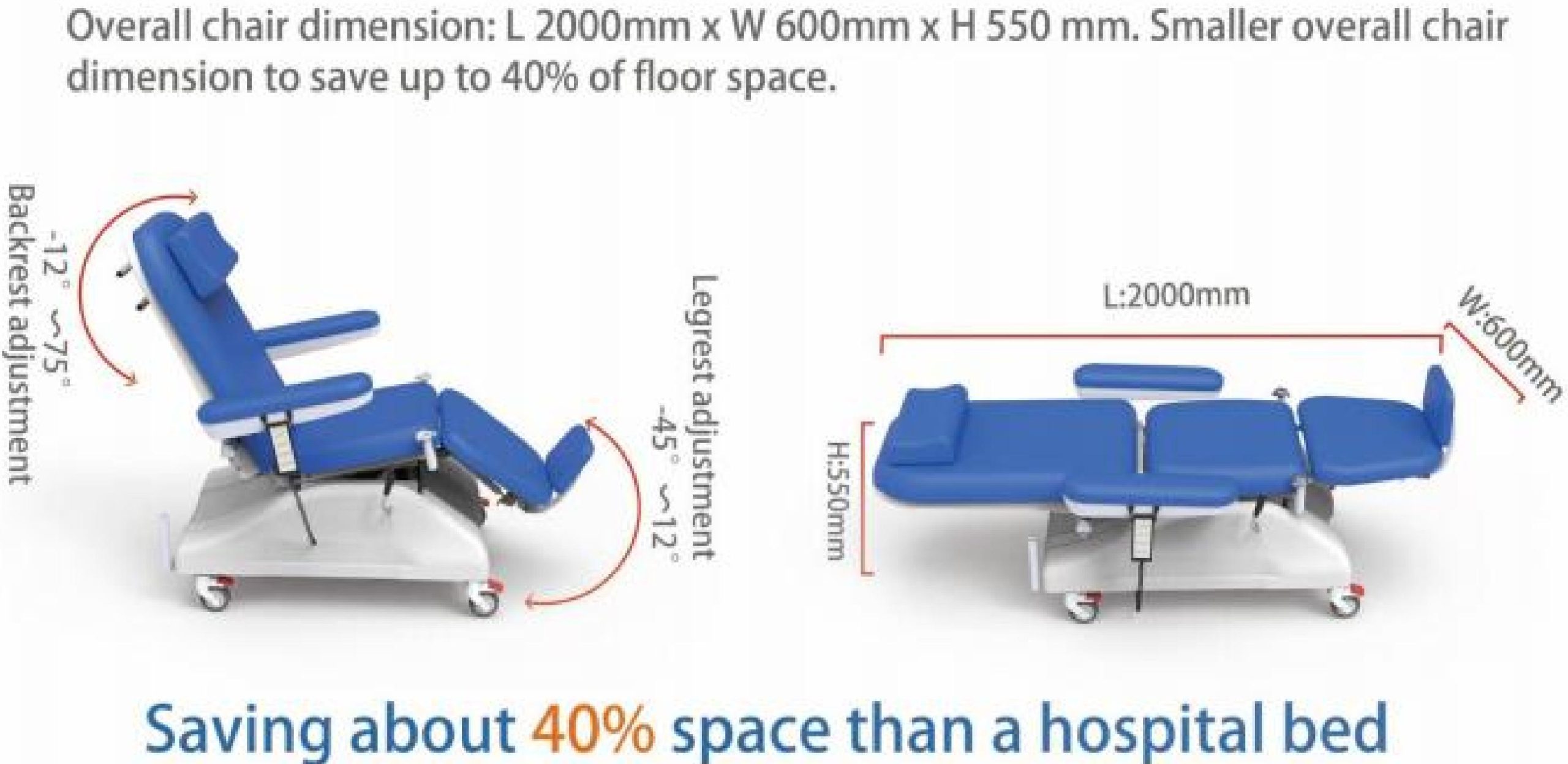

Total Length 2000 mm±20mm
Backrest Adjustment (-12°~75°) ±5°
Seat width 600mm (total width 930mm including armrest) ±20mm
Legrest Adjustment (-45°~12°) ±5°
Seat height 550mm ±20mm
Backrest length 870mm ±20mm
Legrest length 550mm ±20mm
Armrest Dimension L600*W170*D75mm ±20mm
Height of armrest and seat 180~245mm ±20mm
Leather PVC leather
Cushion Sponge
Frame Q235 steel
Power Supply AC110V-240V 50/60Hz
Motor 3
Chassis Dimension 1080mm×700mm ±20mm
Castor 4x (φ100mm swivel castors with separate brakes
Pillow size 400 mm×230 mm×80 mm ±20mm
Weight 65KGS ±3KGS
Safe Maximum Load 240KGS
Food table maximum load 10 KGS
Storage environment Temperature: -20℃~60℃, relative humidity: 10%~85%
Operation environment Temperature: 0℃~35℃, relative humidity: 10%~85%

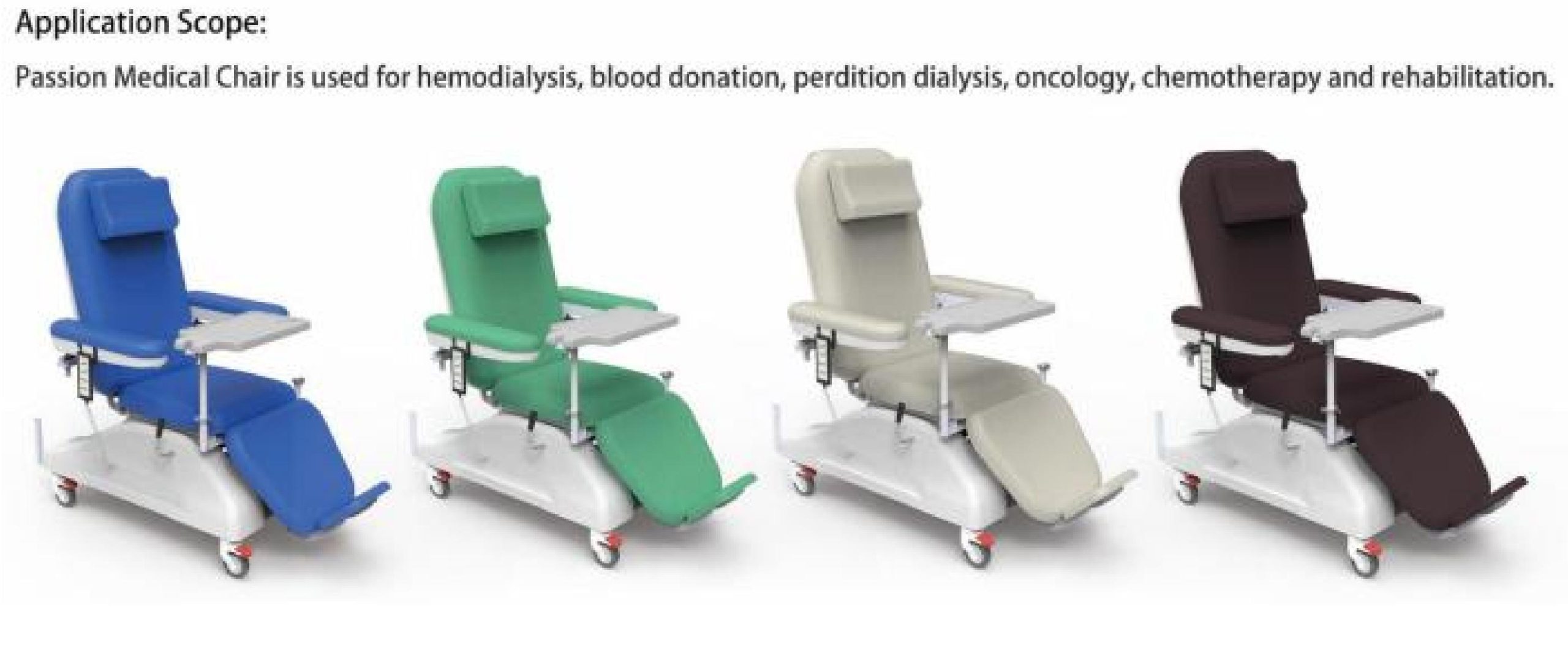

Four Colors Available
