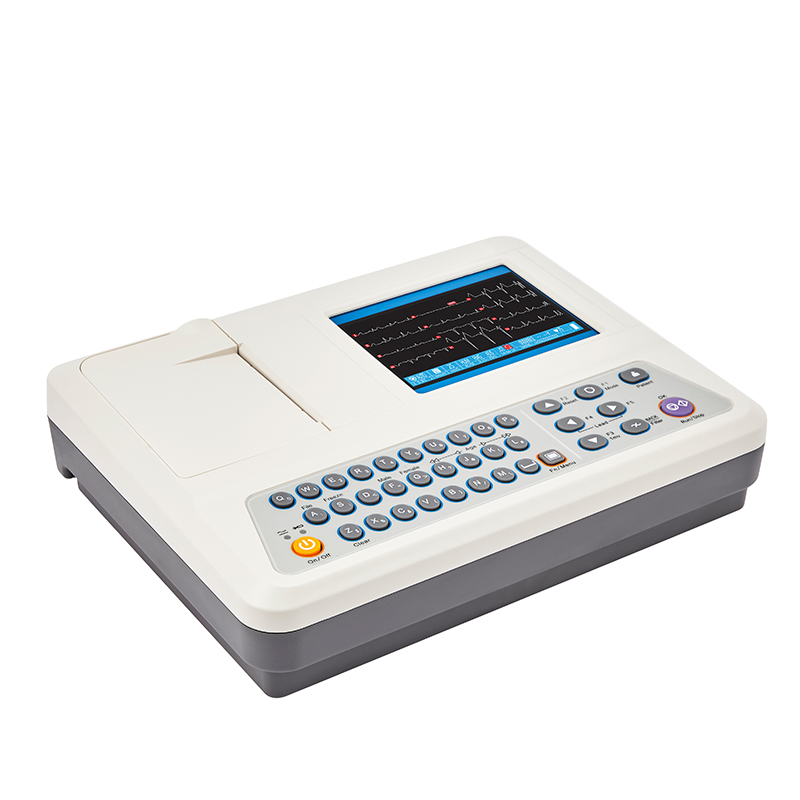

– Portable and delicate design, easy to operate.
– Accurate pulse pace identification function.
– High accuracy digital filter, automatic baseline adjustment.
– Working modes: Manual, Automatic, R-R, Store.
– 80mm, 3 channel format recording, excellent automatic interpretation.
– 800×480 graphic 5inch color LCD to simultaneously display ECG information.
– 250 patient cases storage (SD card storage is optional).
– With alphanumeric keyboard, very convenient to use.
– Detailed patient information input and record.
– With Freeze function.
– Adapt to 110-230V, 50/60Hz power supply. Built-in rechargeable Li-ion battery.
– USB / UART communication ports support USB storage, laser printer printing and PC ECG software (Optional).
| PARAMETER | SPECIFICATION |
| Lead | Standard 12 leads |
| Lead acquisition | 12 leads synchronously acquisition |
| Work mode | Manual / Auto / R-R / Store |
| Filter | AC Filter: 50Hz / 60Hz
EMG Filter: 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (Adaptive) |
| CMMR | ≥120dB ( with AC filter ) |
| Input circuit | Floating; Protection circuit against defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input circuit current | ≤0.05μA |
| Patient current leakage | ＜10μA |
| Calibrating voltage | 1mV±2％ |
| Voltage tolerance | ≥±500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05～160Hz(-3db) |
| Noise level | ＜15μVp-p |
| Inter-channel
Interference |
≤0.5mm |
| Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV (±3%) |
| Recording mode | 1ch+, 3ch, 3ch+ |
| Paper speed | 6.25, 12.5, 25, 50mm/s (±3%) |
| Recording paper | 80mmx20m roll paper |
| Working environment | Temperature 5-40 C; Humidity 25-95% |
| Power Supply | . AC 110-230V (±10%), 50/60Hz (±1Hz)
. DC Built-in rechargeable Li-ion battery, 14.4V, 2200mAh |
| Communication Port | USB, UART |
| Dimension/Weight | 300mmx230mmx75mm/2.8Kgs. |
