PARAMETER |
Fixed SID’s 4 Way Floating Radiography Table |
Electromagnetic brakes for all movements |
Fixed SID distance adjusted to 1000 mm |
Table Top Longitudinal Travel |
+/- 150 mm |
Table Top Transverse Travel |
+50 /- 100 mm |
Table Top Size |
1210 mm x 610 mm |
Whole Machine Dimension |
1200 mm x 860 mm x 2000 mm |
PARAMETER |
a-Si TFT Detector |
Pixel Size |
139μm |
Pixel Matrix |
2912 x 2912 |
AD Conversion |
16 bits |
Spatial Resolution |
3.6 lp/mm |
Imaging Area |
405mm × 405mm (17” x 17”) |
Dimension |
460mm x 460mm x 15mm |
Weight |
4Kg |
PARAMETER |
X-ray Generator |
High Frequency |
300 KHz |
Single Phase |
220/240 VAC, 32 KW |
Output Power |
400mA and 125Kvp |
X-ray tube H.U. continual monitoring for X-ray tube protection |
Kvp Radiographic range |
from 40 to 120 Kvp |
mA Radiographic range |
from 10 to 400 mA |
Anatomical program APR (Kvp, mAs, AEC, focal spot, etc) |
Light and sound indication for X-ray exposure |
Dual Switch (Foot and Hand-Switch) for preparation and exposure control. |
PARAMETER |
X-Ray Tube |
Canon (Toshiba) E7239X |
Maximum Tension |
125 Kvp |
Focus Sizes |
Small focus 1.0 mm, Large focus 2.0 mm |
Anode Target Angle |
16 º |
Anode Rotation 3,000 |
PARAMETER |
Manual Collimator |
Manual collimator with 6 pair of leafs. |
Accessory rails (cones, filters, etc.) |
Field LED lamp of 160 LUX |
Light indicator for alignment with Bucky. |
Retractable measuring tape |
PARAMETER |

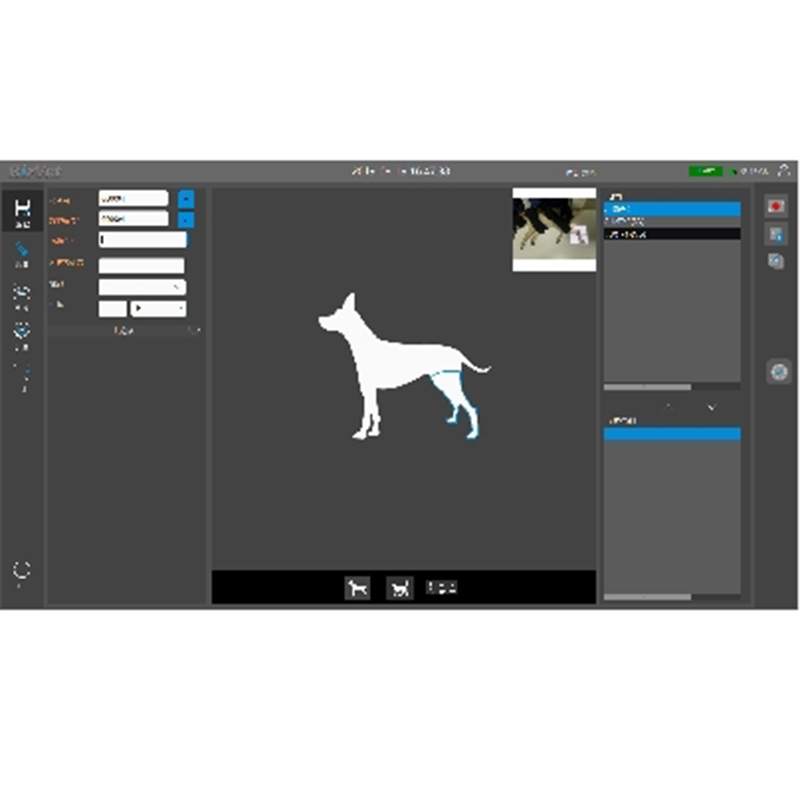

Workstation and S/W
(B-Console vet) |
Preview &Post processing Time : 3 sec |
KV, mA, mAS, Thumb nail View, patient Info and so on |
Main Screen Console: Veterinary patient information |
Automatic Pre & Post image enhancement. |
Expands image processing for optimized viewing |
Enhances variable density and form shading |
Variety Measurements |
Application measurements & teaching tools (such as VHS, HD, TPLO, TTA etc) |
KV and mAs sync-controlled through thickness |
One key to capture images into Clipboard |
DICOM sending and Report writing and Printing |
Easy Calibration & User setting |
