-It can be widely used in the examination and diagnosis of animal limbs, and is suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc;

-Simple structure, small size, light weight, no environmental restrictions, no need to build a lead shielded darkroom;

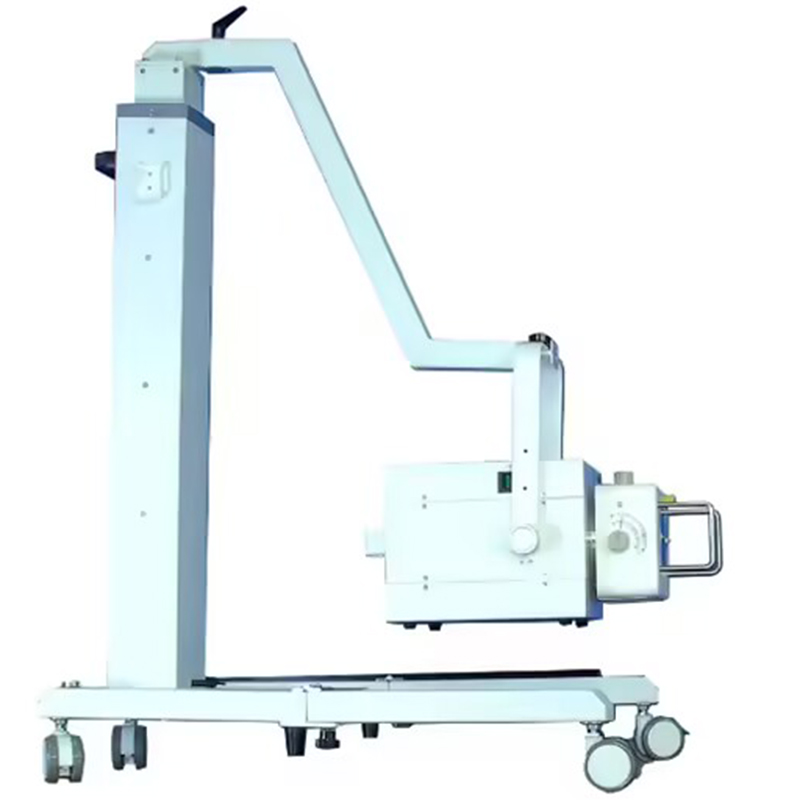

-Mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a bedside shooting in a hospital ward;

-Three exposure control methods: remote control, hand switch, touch screen;

-Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current;

-It is a DR digital X-ray photography system.

Mobile rack, flat panel detector, computer

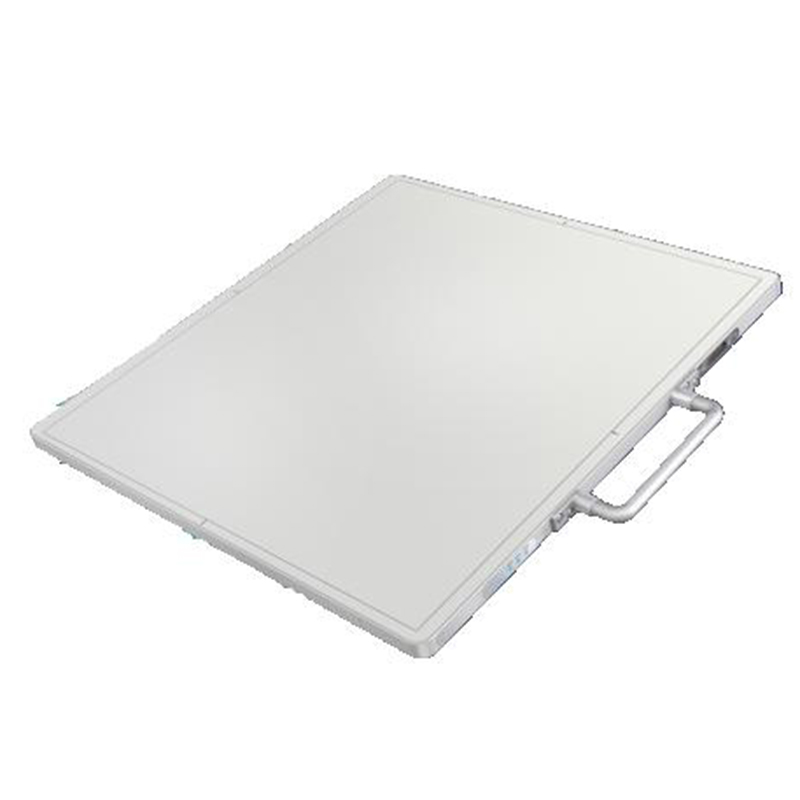

Detector category: amorphous silicon

Scintillator CsI

Image size 43×43 cm(17*17in)

Pixel matrix: 3072×3072

Pixel pitch 139 μm

A/D conversion 16 Bit

Spatial resolution 3.6

Image acquisition time: 1s

Screen size 14.1/15.6

Processor Core Quad

Core

Memory 8G

Hard disk 512G

Graphics card

Net weight 20KG

Maximum height: 1710mm

Adjust 645~1710mm
