Features

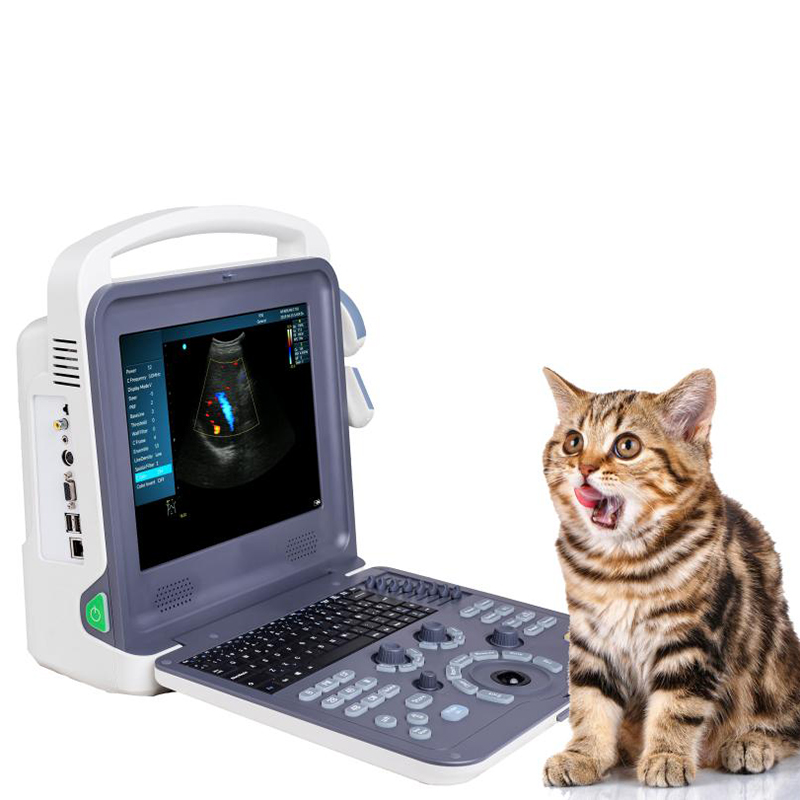

  • High resolution medical LED monitor, 12 inch;
  • Light-weight design, net-weight 6KG;
  • Built-in Li-battery, stand up 2-3 hours;
  • Two probe connected ports, could match with kinds of probes, convex probe, micro-convex and linear probe.
  • Based on Lunix platform, more stable;
  • Four languages: Chinese, English, Russian and French, satisfy the requirement of the most people all over the world.
  • Crystal clear 2D image and sensitive Color Doppler blood flow imaging system;
  • The peripherals: Ethernet interface, 2 USB Ports, VGA interface, S-video interface, Remote interface, Video interface;
  • Applications: Canine, Feline, Ovine, Equine, Bovine, Swine

Technical Specifications

PARAMETER SPECIFICATION
Displaying mode B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, CFM, PW
Signal processing Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing Power adjustable

Smoothing function

Edge enhancement

One-key optimization

Image conversion

Wall filter adjustable

Base line adjustable

PRF adjustable

AIO-Auto image optimization

IZoom: Instant full screen image

I-Image: intelligent optimization

Storage: Direct date transfer to U disk

MBF: Multi Beam Former

SA: Synthetic Aperture Ultrasonic imaging

Iclear: Speckle Noise Reduction

CDF: Continuous Dynamic Focusing

Normal measurement B mode-distance, Cubage,V3L, STD_S, AreaTrace, Area, Angle, CrossLine, STD_D, ParalleLine
Canine measurement BD, CRL,GS,HD
Ovine measurement BPD, CRL
Feline measurement BD, HD
Equine measurement BPD, CD
Bovine measurement CRL, HD, TD
Swine Measurement GS, CRL
Image magnification 15 levels magnification
Scanning depth ≥280mm
Probe elements 80
Body mark Canine, Ovine, Feline, Equine, Bovine, Swine
Languages China, English, Spanish, French, Russian
Image storage format Image storage format
Image storage size 16G (optional: 64G)
Input/output ports VGA, USB, S-Video, Video, LAN

Standard configuration

  • Main unit
  • 2 probe connectors
  • User’s Manual

Built-in li-ion battery

Optional

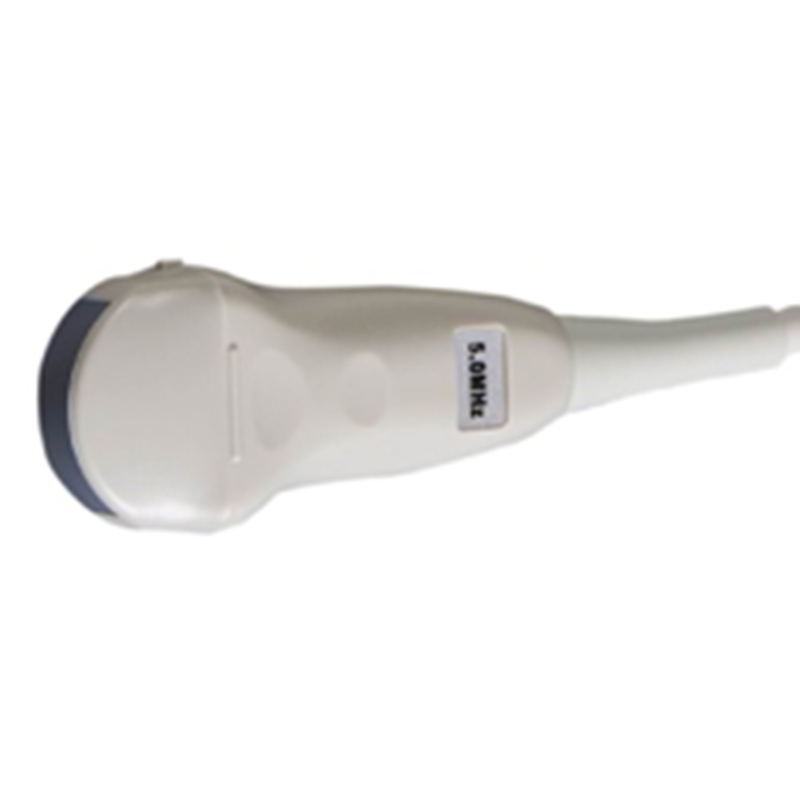

  • 5MHz R50 convex probe(2.0, 3.0, 3.5, 4.0, 5.5Mhz)
  • 5MHz R15 micro-convex probe(5.0, 6.0, 6.5, 9.0, 10.0Mhz)

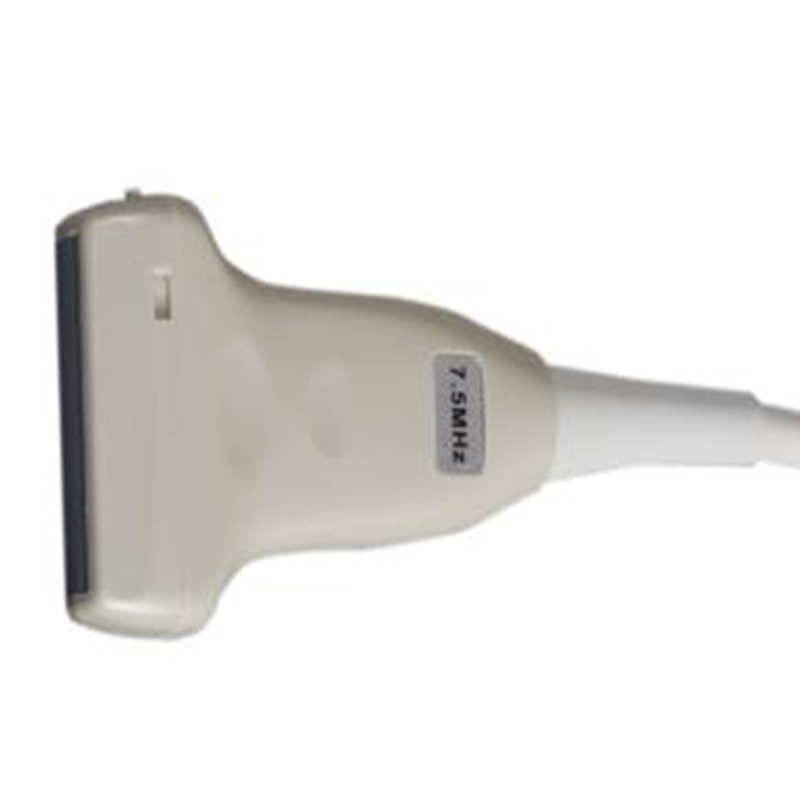

  • 5MHz L40 linear probe (6.0, 6.5, 7.5, 10.0, 12.0Mhz)

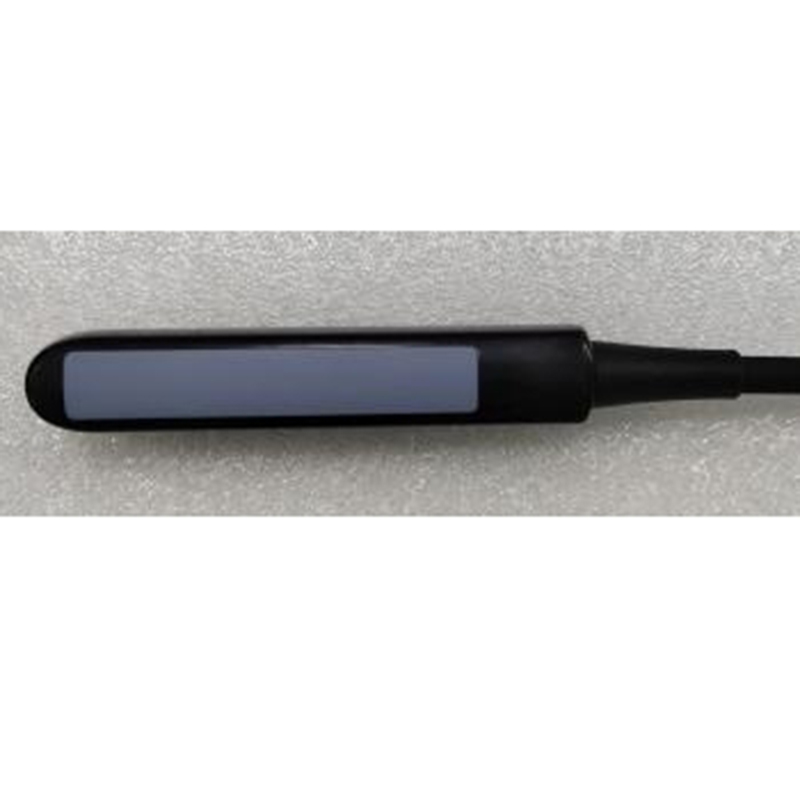

  • 0MHz L64Transrectal probe (5.0, 6.0, 6.5, 8.0, 9.0Mhz)
  • USB laser printer and Video printer
  • Aluminum case
  • Trolley
